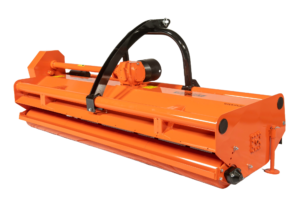

The KW flail mower is a very sturdy and versatile flail mower. They are suitable for rear mount to the tractor and are equipped with a simple offset mechanism.
Product description
The KW flail mower has a powerful 540 revolutions drive with automatic V-belt tensioning. The gearbox is equipped with an integrated overrunning clutch.
These robust flail mowers are equipped with 0.9 kg (2lbs) flails as standard; optionally, flex flails can be installed to protect the machine against damage by rocks or other hard objects. A hydraulic offset is optionally available as well.
The heavy rotor with large diameter guarantees an excellent capacity and reliability. To guarantee a long life span the rotors are balanced twice, which decreases the chance of imbalance and increases the machine’s longevity.
Downloads
Specifications
Technical specifications | KW-245 | KW-270 | KW-300 |
---|---|---|---|
Working width (cm) | 245 | 270 | 300 |
Rpm: | |||
- PTO (rpm) | 540 | 540 | 540 |
- Flail rotor (rpm) | 1890 | 1890 | 1890 |
Min. power required (kw/hp) | 33/45 | 40/55 | 48/65 |
Flails 0.9 kg | 24 | 28 | 32 |
Transport width (cm) | 261 | 286 | 316 |
Tractor 3 pt. linkage (cat.) | II | II | II |
Weight (kg) | 830 | 875 | 920 |
Offset from centre of tractor (cm) | |||
- minimum (cm) | 88 | 113 | 143 |
- maximum (cm) | 135 | 160 | 190 |
